Re: P.S. hose routing on a six cylinder??
Re: Re: P.S. hose routing on a six cylinder?? -- Tom Mulloy	Post Reply	Top of thread	Maverick Message Board

Posted by: Corbin Johnson 01/26/2002, 13:13:26

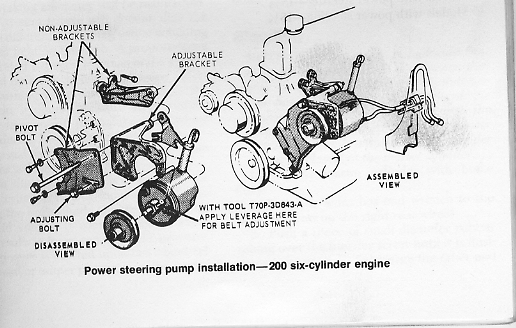

Sure Tom, Here it is. Hope this helps. If you need more clarification on exactly where it goes, I will look a my Brother's 250 Mav for you. This picture is from a 200, but it will be the same mounting position for your 250. - Corbin Johnson Uploaded file mavpowersteering.bmp

Post Reply | Alert

Original message Top of thread Return to the MMB

Replies to this message

Hold on! This picture turned out right. --- Corbin Johnson ( 01/26/2002, 13:28:34 ) ( 281 bytes ) img +1 Here is another one! --- Corbin Johnson ( 01/26/2002, 13:31:15 ) ( 64 bytes ) img +1 Re: Here is another one! --- Tom Mulloy ( 01/27/2002, 01:08:53 ) ( 121 bytes )
